RTCP Meter è stato appositamente progettato e realizzato da Reset Industria nel 2017 e serve alla misurazione e la qualifica di teste birotative continue e indexate.

Il dispositivo è dotato di due comparatori con scala graduata maggiorata ed è in grado di verificare errori geometrici, precisione di posizionamento e altri parametri RTCP di teste e tavole, consentendo ai tecnici installatori di apportare eventuali correzioni.

Vantaggi principali di RTCP Meter

  • RIDUZIONE CONSIDEREVOLE DEI TEMPI D’INSTALLAZIONE
  • RAPIDITÀ DI RILEVAMENTO DELLE QUOTE PER IL CALCOLO DEL CENTRO UTENSILE
  • INDIVIDUAZIONE DEL CENTRO TAVOLA, ANCHE QUANDO QUESTA NON VIENE RAGGIUNTA DAL MANDRINO

inoltre…

Abbiamo progettato RTCP Meter con l’obiettivo di renderlo semplice sia in fase di installazione che in fase di utilizzo, anche da parte di tecnici non altamente specializzati.

In tal modo è possibile effettuare verifiche della geometria testa ogni qualvolta se ne presenti la necessità, evitando così costosi interventi di assistenza e tempi lunghi per il fermo macchina.



Dotazioni e caratteristiche peculiari

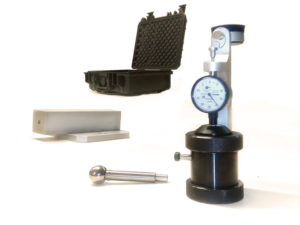

RTCP Meter è stato realizzato con corpo in acciaio brunito, con stelo e struttura portante in alluminio anodizzato, ed è provvisto di:

  • utensile campione sferico in acciaio inox (sfera certificata G40), regolabile in coassialità
  • puntalini piatti, per migliorare il contatto
  • comparatore di precisione con movimento su rubini e scala graduata e maggiorata, per una miglior lettura (componenti MITUTOYO
  • sistemi di posizionamento in squadra o su basi magnetiche

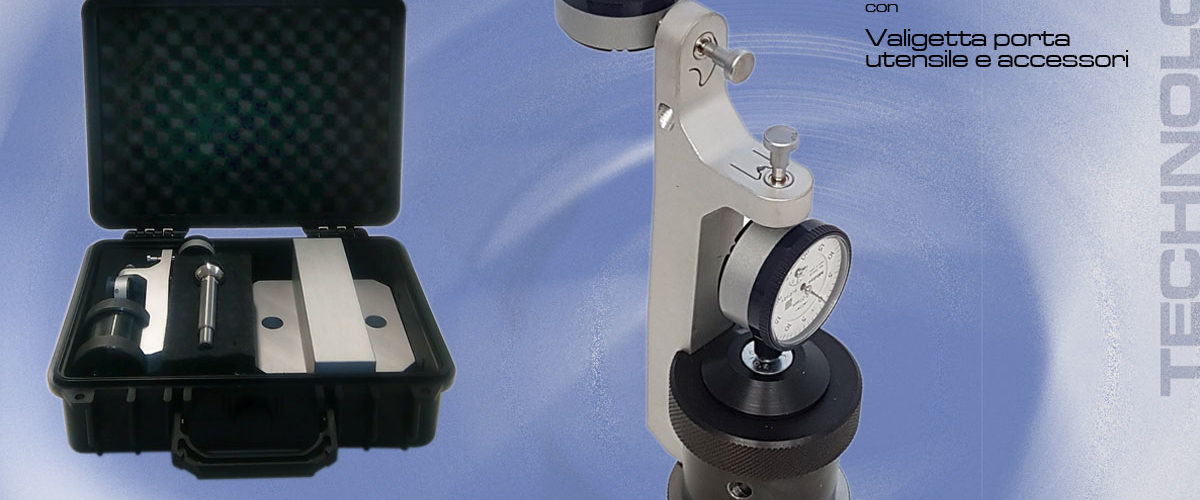

  • valigetta ABS porta utensile e accessori

Per ulteriori informazioni riguardanti RTCP Meter vedere la pagina CONTATTI.

 [en] RTCP Meter was specially designed and realized in 2017 by Reset Industria for the measurement and the qualification of continuous and indexed birotative heads.

The device is equipped with two comparators with a graduated scale and is able to verify geometric errors, positioning accuracy and other RTCP parameters of heads and tables, allowing installers to make any corrections.

Key benefits of RTCP Meter

  • CONSIDERABLE REDUCTION OF INSTALLATION TIME
  • QUICK RELEASE OF QUOTAS WHEN CALCULATING THE TOOL CENTER
  • DETECTION OF THE TABLE CENTER, EVEN WHEN THIS IS NOT REACHED FROM THE SPINDLE

in addition…

We designed RTCP Meter with the aim of making it easier both during installation and during use, even by non-specialized technicians.

In this way, it is possible to check the geometry of the head whenever the need arises, thus avoiding costly service interventions and lengthy time for machine downtime.



Equipment and special features

RTCP Meter is made of burnished steel body and stem and anodized aluminum supporting structure, and is provided with:

  • spherical specimen tool in stainless steel (ball certified G40), with adjustable coaxiality
  • flat ferrules, to improve contact
  • precision comparator by movement on rubies with a enlarged graduated scale for better reading (MITUTOYO components)
  • positioning systems by squares or magnetic bases
  • ABS case for tools and accessories

For further info, please refer to our CONTACTS page.
